Manufacturing Range
 |
 |
| 1.
Circumscribing circle diameter |
| |
A)
for extruded product - 4,125"
Max
B) for drawn product - 4"
max Cross Sectional - 1/2 S2 Inch
minimum. |
|
|
| 2.
Element thickness |
| |
A)
Extruded - 4mm Min.
B) drawn - 3mm Min. |
|
|
| 3.
Length |
| |
A)
Extruded: 50ft.Max weight limit
up to 55 kgs.
B) Drawn: 10ft. Max. Weight limit
upto 55 kgs. |
|
|
|
4. Tolerance |
| |
A)
Extruded : +0.30" Min. on
any dimension.
B) Drawn : +0.005 min. on any
dimension. |
|
|
| 5.
Temper |
| |
any
standard desire temper. |
|
|
|
6. Material |
| |
We
can supply section in the following
copper and copper based alloys.
* Copper : Electrolytic Copper
- DHP Copper, DPA Copper, DLP.
* Copper based alloy : Brass 63/37,
Brass 70/30 |
|
|
|

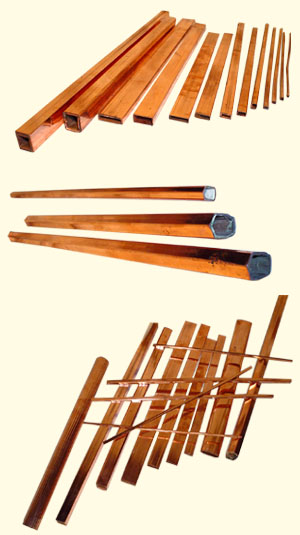

7. Shapes |
| |
Profiled
Tubes and Rods in Reeded, Oval,
Rectangle, Polygon, Square and
twisted shape. |
|
